Description

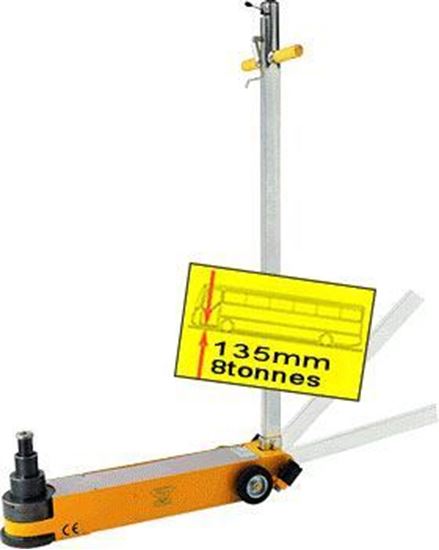

The MTJ135-8 hydraulic jack has been designed specifically for garages and vehicle operators who maintain and repair modern, low access buses and coaches. It’s high on lifting power, low on access height. It will go where conventional jacks won’t – under the skirts of modern, low-axle vehicles – providing secure power to take 8 tonnes up to 315mm for safe and convenient access.
Standard Features
Three-positional handle – Can be stowed in the vertical position while in use: a major health and safety benefit. It can also be kept in the horizontal position while in use to allow deeper access beneath the vehicle. The mid-position is designed for convenient and comfortable manoeuvring.
The inside story – The power, accuracy and control of the MTJ135-8 derives from the unit’s wellproven air motor – as fitted to all Majorlift air-operated commercial pit jacks.
Three-stage ram Allows entry from just 135mm.
Hydraulics raise the ram to the desired height – up to 315mm – and the controlled powered-down operation guarantees maximum safety while the vehicle is lowered.
